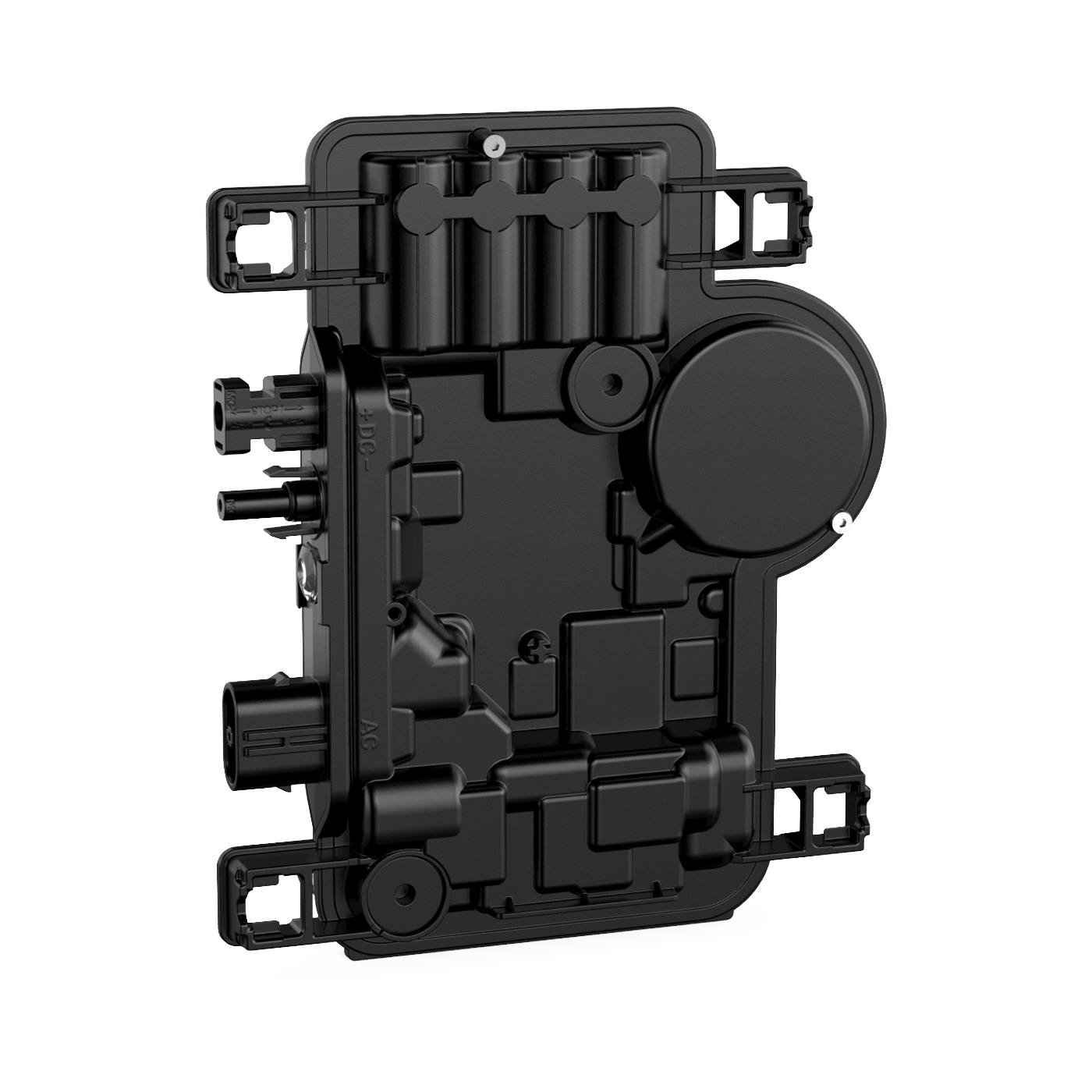

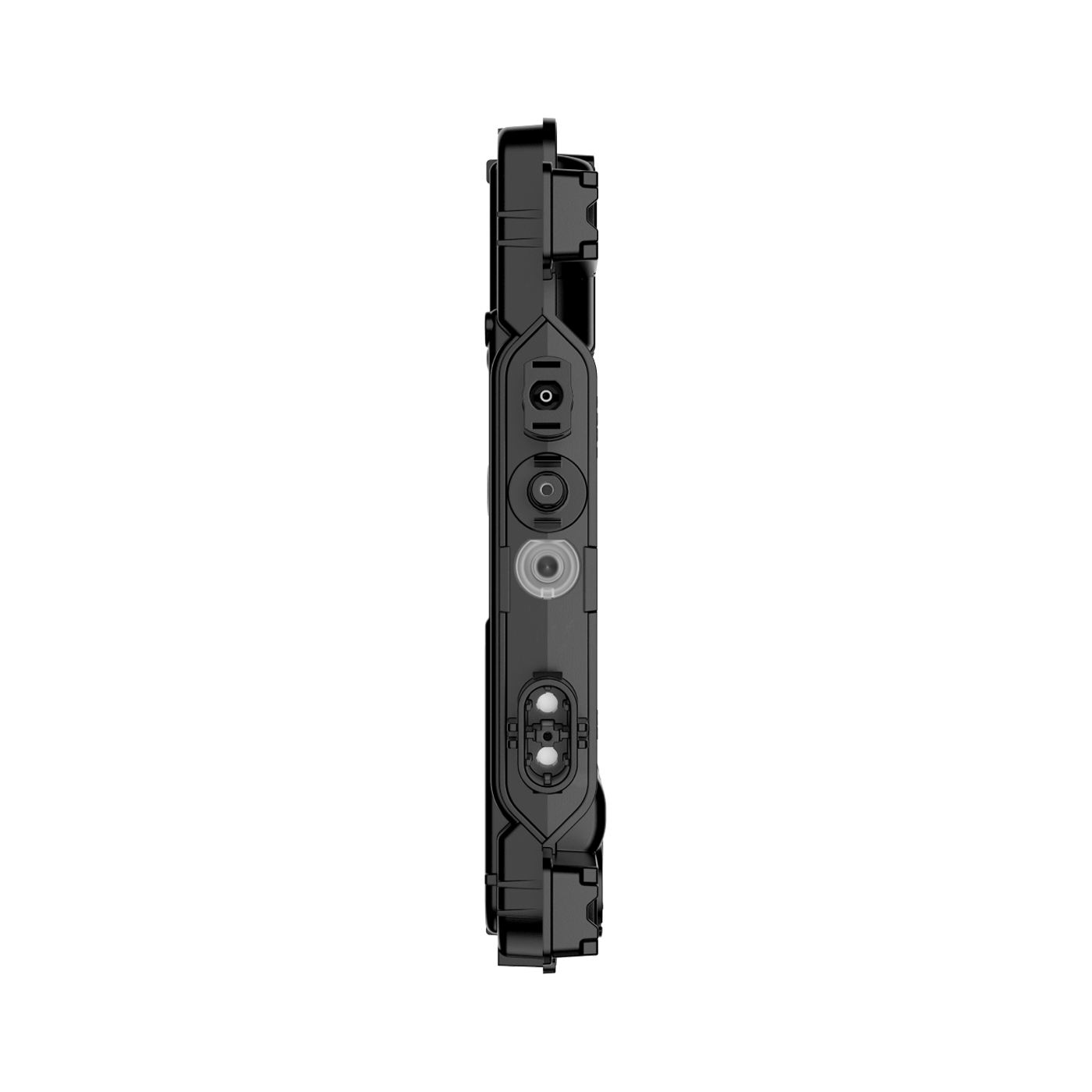

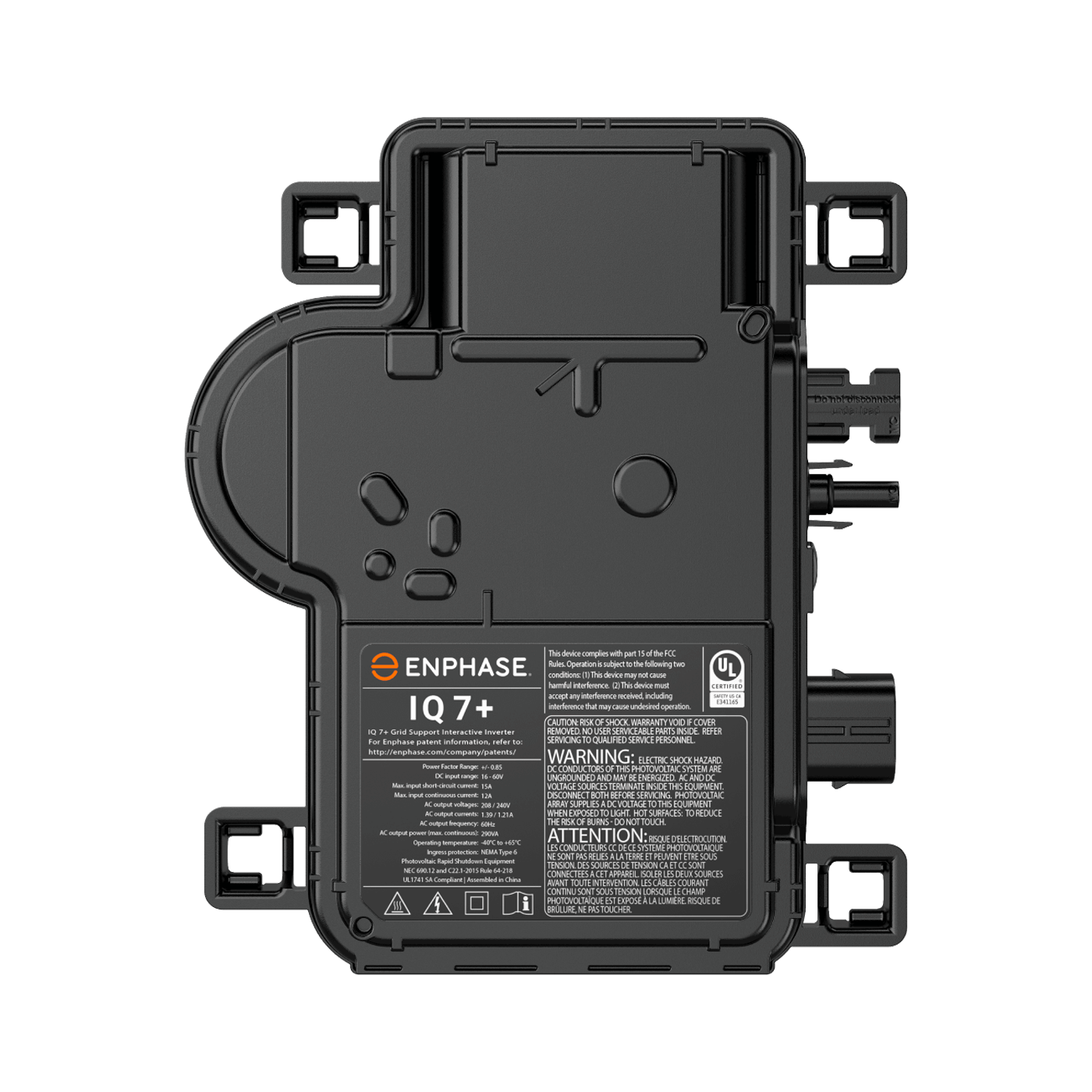

Enphase IQ7+ Microinverter

Brand: Enphase

Color: Black

Features:

• Easy to Install Lightweight and simple Faster installation with improved, lighter two-wire cabling Built-in rapid shutdown compliant
• Efficient and Reliable Optimized for high powered 60-cell and 72-cell modules Highest EU efficiency of 96.5% More than a million hours of testing Class II double insulated IP67 enclosure
• Smart Grid Ready Complies with advanced grid support, voltage and frequency ridethrough requirements Envoy and Internet connection required Configurable for varying grid profiles

Details: INPUT DATA (DC)IQ7PLUS-72-2-US Commonly used module pairings¹235 W - 440 W + Module compatibility60-cell/120 half-cell and 72Cell/144 half-cell PV modules Maximum input DC voltage60 V Peak power tracking voltage27 V - 45 V Operating range16 V - 60 V Min/Max start voltage22 V / 60 V Max DC short circuit current (module Isc)15 A Overvoltage class DC portII DC port backfeed current0 A PV array configuration1 x 1 ungrounded array; No additional DC side protection required; AC side protection requires max 20A per branch circuit OUTPUT DATA (AC)IQ 7+ Microinverter Peak output power295 VA Maximum continuous output power290 VA Nominal (L-L) voltage/range²240 V / Maximum continuous output current1.21 A (240 V) 1.39 A (208 V) Nominal frequency60 Hz Extended frequency range47 - 68 Hz AC short circuit fault current over 3 cycles5.8 Arms Maximum units per 20 A (L-L) branch circuit³13 (240 VAC) 11 (208 VAC) Overvoltage class AC portIII AC port backfeed current18 mA Power factor setting1.0 Power factor (adjustable)0.85 leading ... 0.85 lagging EFFICIENCY@240 V @208 V Peak efficiency 97.5 % 97.3 % CEC weighted efficiency 97.0 % 97.0 % MECHANICAL DATA Ambient temperature range -40ºC to +65ºC Relative humidity range 4% to 100% (condensing) Connector type MC4 (or Amphenol H4 UTX with additional Q-DCC-5 adapter) Dimensions (HxWxD) 212 mm x 175 mm x 30.2 mm (without bracket) 8.35x6.9x1.19 Inches Weight 1.08 kg (2.38 lbs) Cooling Natural convection - No fans Approved for wet locations Yes Pollution degree PD3 Enclosure Class II double-insulated, corrosion resistant polymeric enclosure Environmental category / UV exposure rating NEMA Type 6 / outdoor FEATURES Communication Power Line Communication (PLC) Monitoring Enlighten Manager and MyEnlighten monitoring options. Both options require installation of an Enphase IQ Envoy. Disconnecting means The AC and DC connectors have been evaluated and approved by UL for use as the load-break disconnect required by NEC

Item Condition: New
